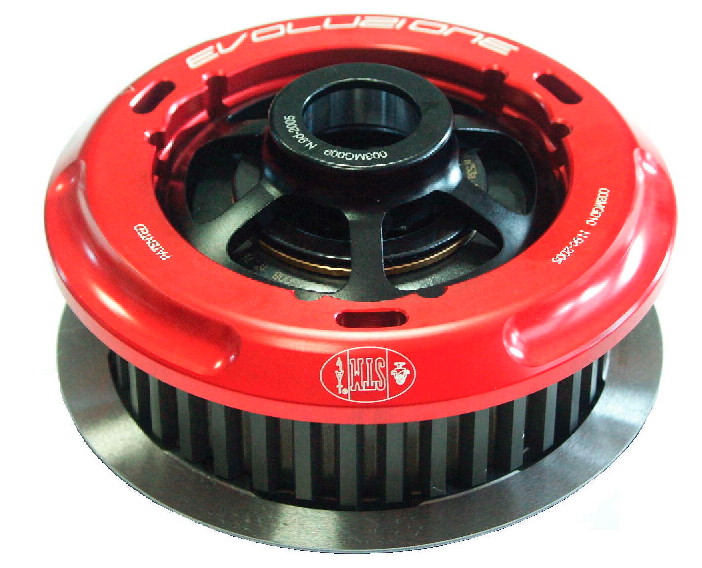

Compatibile con: all dry clutch Ducati motorcycles


Istruzioni di montaggio: Download PDF

Descrizione: Material: aluminum alloys and special steel
Primary spring: 90 mm Evoluzione diaphragm spring code 003MG019
Basket: 12 tooth
Features: progressive engagement plate - clutch pack inspection system (CPI)
Compatible disc pack: code 003PD001
Tools: original Ducati basket mounting tool – pressure plate mounting tool code 002AMH001 (recommended)Other compatible STM products: titanium clutch cover code 045MG001 - slave cylinder code 049MG*01/30 - slave cylinder code 049MG*01/28 - clutch pushrod pin for bearing code 044MG001

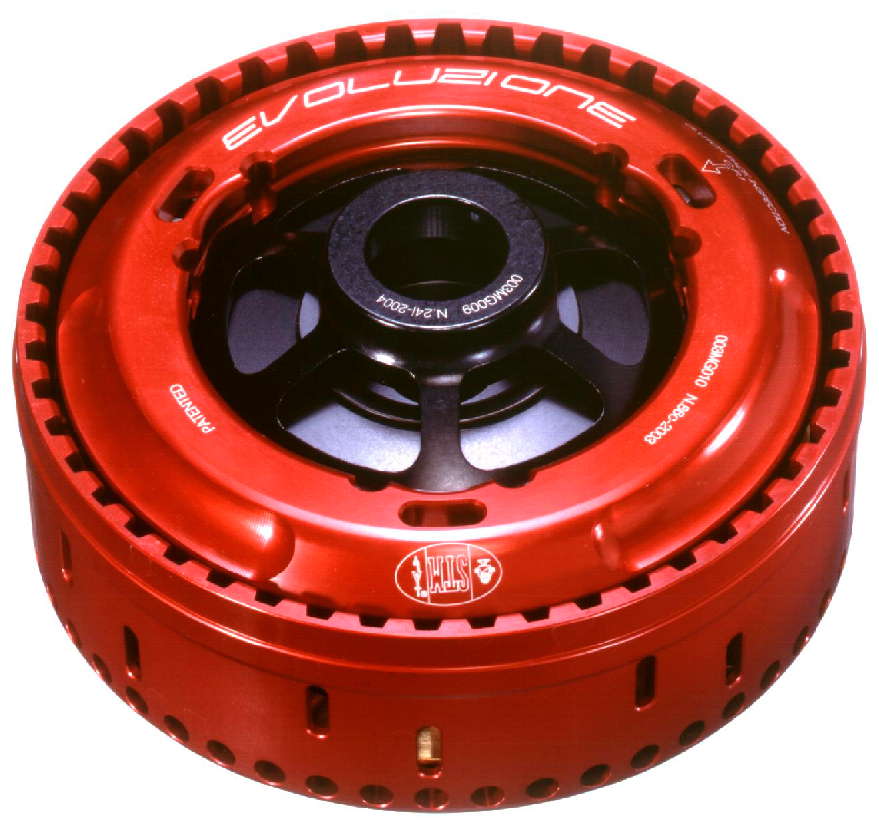

Compatibile con: all dry clutch Ducati motorcycles


Istruzioni di montaggio: Download PDF
Descrizione: Material: aluminum alloys and special steel
Primary spring: 90 mm Evoluzione diaphragm spring code 003MG019
Secondary spring: spider spring code 001MG017
Basket: 48 tooth
Features: slipper system - device to control the opening - progressive engagement plate - cutch pack inspection system (CPI)
Compatible disc pack: code 003PD048

Tools: basket mounting tool code 004AM001 (recommended) - pressure plate mounting tool code 002AMH001 (recommended)


Other compatible STM products: titanium clutch cover code 045MG001 - slave cylinder code 049MG*01/30 - slave cylinder code 049MG*01/28 - clutch pushrod pin for bearing 044MG001
Available versions: with 35° ramp code 003MG048/35°- with 45° ramp code 003MG048/45°
NB: the larger the ramp angle, the greater the engine braking





Compatibile con: all dry clutch Ducati motorcycles


Istruzioni di montaggio: Download PDF

Descrizione: Material: aluminum alloys and special steel
Primary spring: 90 mm Evoluzione diaphragm spring code 003MG019
Secondary spring: spider spring code 001MG017Basket: 12 tooth
Features: slipper system - device to control the opening - progressive engagement plate - clutch pack inspection system (CPI)
Compatible disc pack: code 003PD001
Tools: original Ducati basket mounting tool - pressure plate mounting tool code 002AMH001 (recommended)

Other compatible STM products: titanium clutch civer code 045MG001 - slave cylinder code 049MG*01/30 - slave cylinder code 049MG*01/28 - clutch pushrod pin for bearing 044MG001

Available versions: with 35° ramp code 003MG001/35° - with 45° ramp code 003MG001/45°

NB: the larger the ramp angle, the greater the engine braking






Compatibile con: all dry clutch Ducati motorcycles


Istruzioni di montaggio: Download PDF


Descrizione: Material: aluminum alloys and special steel
Primary spring: 90 mm Evoluzione diaphragm spring code 003MG019
Secondary spring: spider spring code 001MG017
Basket: original Ducati ((not included)
Features: slipper system - device to control the opening - progressive engagement plate - cutch pack inspection system (CPI)

Compatible disc pack: Ducati original (not included) or STM disc pack code 041PD001
Tools: pressure plate mounting tool code 002AMH001 (recommended)
Other compatible STM products: titanium clutch guard code 045MG001 - slave cylinder code 049MG*01/30 and code 049MG*01/28 - clutch pushrod pin for bearing 044MG001
Available versions: only with 45° ramp
