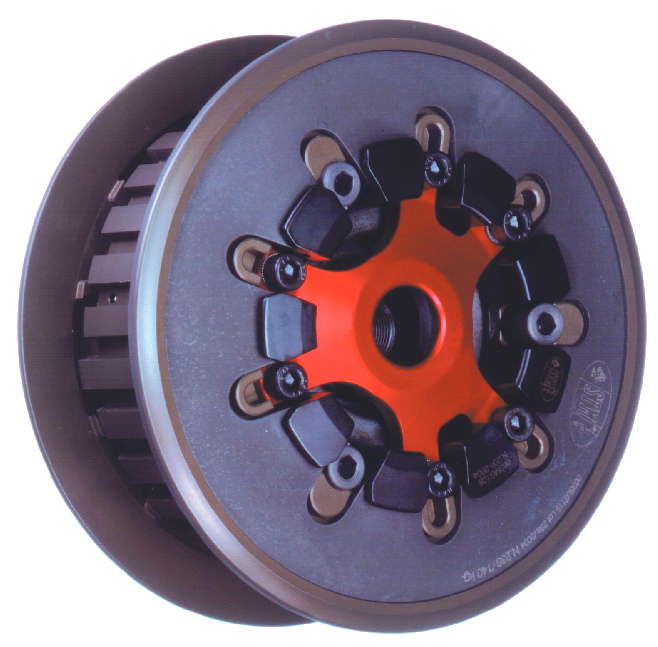

Compatibile con: MV Agusta 1000, Brutale 910 and Brutale 750 with M22x1.5 clutch shaft thread


Istruzioni di montaggio: Download PDF

Descrizione: Material: aluminum alloys and special steel
Primary spring: 125 mm Evoluzione diaphragm spring code 003SUZ119
Secondary spring: 85 mm Evoluzione spring code 0F3SR540B140006
Basket: original MV Agusta (not included)
Features: slipper system - device to control the opening - Forced Lubrication System 3
Compatible disc pack: original MV Agusta (not included)


Tools: pressure plate mounting tool code 002AMS001 (recommended)
Note: when choosing the primary spring keep in mind that the greater the spring tension, the greater the pressure on the disc pack and the smaller the slipping in acceleration. When choosing the secondary spring remember that the greater the spring tension, the greater the engine brake in deceleration
