HRC ECU System

HONDA RACING Engine management System.

Available for CBR1000RR . CBR954RR . CBR600RR . RTL250F

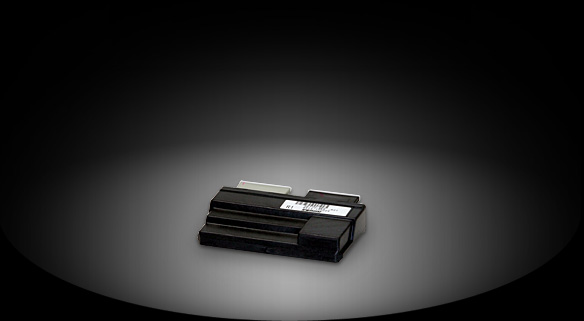

CBR600RR 2006

air-fuel ratio control (graph display)
you can control fuel distribution percentage between the upper and lower injector

ignition timing control (graph display)

set Pit Road Speed Limiter

HESD (Honda Electric Steering Damper) Setting

　

Left Handlebar Switch Function

On this machine, the each switch of the left handlebar switch is function as follows:

Passing switch: Stop watch function (lap time)

Horn switch: Power shifter function

Turn signal switch: Pit road speed limiter

Stop Watch:

When the switch is pushed, the stop watch is started.

See page 44 for lap time indicator function.

Power Shifter:

While pushing the switch, both the ignition and fuel

injection cut-off system is activated.

See page 21 for power shift setting.

Pit Load Speed Limiter:

While pushing the turn signal switch to the right or

left, the pit road speed limiter is activated.

The pit road speed limiter is deactivated, when you

turn the turn signal switch off.

See page 17 for pit road speed limiter function.
